A worn, jammed or badly feeding head can turn a quick edge-up into a proper time-waster. Knowing how to replace a whipper snipper head means you can stop fighting tangled nylon, get the machine cutting cleanly again and finish the job while you’ve still got momentum.
The job is usually straightforward, but it is not a case of grabbing any head off the shelf and winding it on. Petrol line trimmers use different shaft threads, adaptors and rotation directions. Get those right first and replacing the head is a practical job most property owners can handle at home.
Before you replace your whipper snipper head
Start safe. Switch the engine off, let it cool if it has been running, and remove the spark plug lead. Put the trimmer on a stable, flat surface with the cutting head facing up. Gloves are worthwhile here - old line can be sharp, and a head that has been used around rocks, wire or fence lines may have rough edges.
Take a good look at the trimmer’s gearbox and existing head before removing anything. You want to identify three things: the direction the head spins, the thread direction on the output shaft, and whether there is an adaptor, washer or retaining cup already fitted.
Most petrol whipper snippers use a left-hand thread. That sounds backwards, but it is deliberate: the head’s normal rotation helps keep it tight while you work. A left-hand thread loosens clockwise and tightens anticlockwise. Do not assume, though. Check the markings on the old head, your trimmer manual, or the shaft itself.
It is also worth checking whether the head is truly the problem. If the machine is vibrating heavily, the gearbox is loose, or the shaft is damaged, a new head will not fix it. Likewise, line that continually snaps close to the eyelets may point to worn eyelets or the wrong line diameter rather than a fault in the trimmer engine.
What you need for the job
For most head changes, you need the locking pin supplied with the trimmer, or a suitable Allen key or small screwdriver to lock the gearbox. You may also need a socket, spanner or adjustable spanner for a retaining nut. Keep a rag nearby to clear grass and dirt from around the gearbox.
Your replacement head should suit the machine’s shaft size and thread. Universal heads are made to cover a wide range of petrol trimmers through adaptor kits, but compatibility still matters. Match the adaptor to your trimmer rather than forcing the first one that seems close enough.
If you are changing from a bump-feed head to a reloadable fixed-line system, make sure the new head is rated for your trimmer and the type of work you do. A light edging job and clearing rank grass around a lifestyle block place very different demands on line and cutting profile.
How to replace a whipper snipper head step by step
1. Lock the gearbox
Rotate the old head by hand until the locking hole in the gearbox lines up with the hole in the drive flange or housing. Insert the locking pin, Allen key or screwdriver fully. The shaft should now be held still.
If the holes will not line up because grass is packed around the head, clear it first. Do not jam a tool into the gearbox or use brute force. A few minutes spent cleaning the area is cheaper than damaging a drive component.
2. Remove the old head
With the shaft locked, unscrew the existing head. Remember that many trimmers use a left-hand thread, so you may need to turn the head clockwise to remove it. If it refuses to move, use firm, controlled pressure rather than hitting it with a hammer or levering against the gearbox.
Once the head is off, place any washers, cups and nuts in the order they came off. A quick photo on your mobile before disassembly can save a lot of head-scratching later. Some trimmers rely on a particular spacer or flange to keep the head centred and secure.
3. Clean and inspect the mounting area
Wipe grass, dust and old nylon fragments from the output shaft and drive flange. Check the threads for damage and inspect the flange for cracks, severe wear or wobble. The new head needs a clean, flat mounting surface to run true.
This is also the time to look for line wrapped behind the old head. Long grass can work its way into the shaft area, especially when clearing thick weeds. Remove it before fitting the replacement head, otherwise it can cause heat, drag and poor performance.
4. Choose the correct adaptor
If your replacement head comes with several adaptors, do not guess. Test-fit the adaptor on the shaft by hand. It should sit squarely and thread on smoothly without cross-threading, wobbling or needing force.
A head that starts crooked is a warning sign. Back it off, check the adaptor size and try again. Cross-threading can damage the trimmer’s output shaft, turning a simple replacement into a repair job.

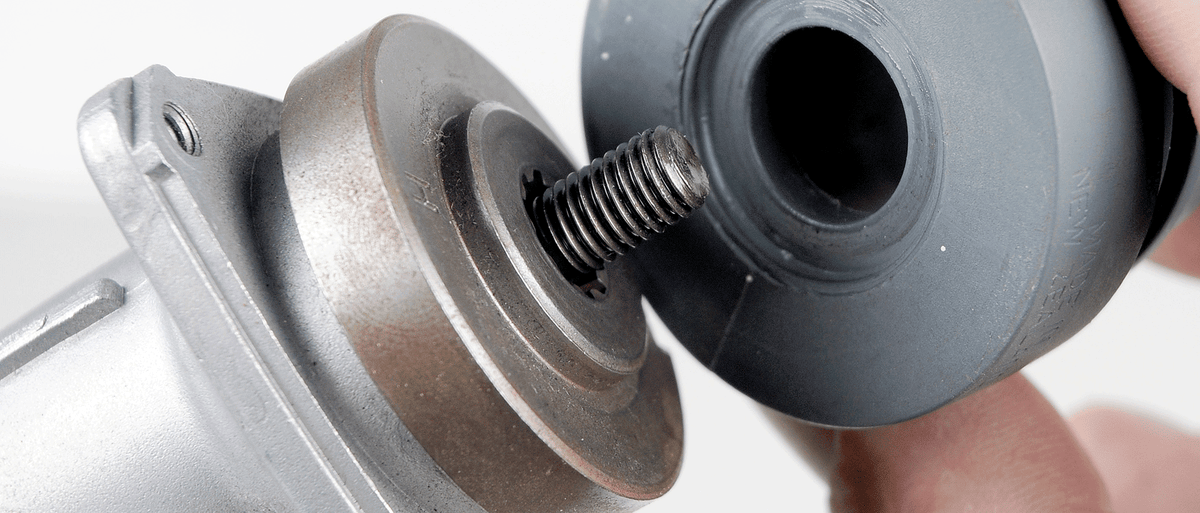

5. Fit and tighten the new head
Install any required washer or drive cup, then thread the new head onto the shaft in the correct direction. Keep turning by hand until it seats against the flange. With the gearbox still locked, tighten it firmly according to the trimmer or head manufacturer’s instructions.
Firm is the key word. Overtightening can damage plastic components or make the next head change difficult. Under-tightening is just as unhelpful, as the head can work loose, vibrate or damage the thread while cutting.
Give the head a spin by hand once the locking pin is removed. It should rotate freely without scraping the guard, wobbling badly or catching on anything.
Load the right trimming line
A new head performs only as well as the line inside it. Check the head’s recommended line diameter and cutting length. Heavier line is useful in long grass and tougher weeds, but line that is too thick for the head or machine can overload the engine and reduce cutting speed.
Traditional bump-feed heads often require line to be wound neatly in the correct direction. If the line is crossed, packed too tightly or loaded backwards, it can jam before the spool is half empty. That is the frustration many people are trying to leave behind.
Reloadable fixed-line heads take a different approach. You cut line lengths, feed them through the head and get back to work without pulling the whole unit apart. A universal reloadable head such as Littl’ Juey can be a practical upgrade for compatible petrol trimmers when you want less winding, fewer jams and faster line changes during bigger jobs.
For neat lawn edges, use a line length that stays inside the guard’s cutting range. For rougher clearing, follow the head’s instructions on line length and profile. More line is not automatically better - overly long line creates drag, wastes fuel and can make the machine feel sluggish.
Test it before tackling the section
Reconnect the spark plug lead only after the head is fitted and the work area is clear. Start the trimmer outdoors, hold it securely and let it idle first. Watch for excessive vibration, rattling or an uneven spin.
Bring the revs up gradually. If the head runs smoothly, trims evenly and stays secure, you are ready to go. If it vibrates, stop the engine and inspect the fitment. Common causes are an incorrect adaptor, missing washer, uneven line lengths or a head that has not seated properly against the drive flange.
Do not test a fresh setup beside windows, cars, pets or loose stones. A whipper snipper can throw debris hard and fast, even at low revs. Wear eye protection, sturdy footwear and long trousers whenever you trim.
Small habits that make the next change easier
After each use, brush grass from the head and gearbox area before putting the trimmer away. Store spare line somewhere dry, as old, brittle nylon breaks more easily and feeds poorly. Every few sessions, check that the head is still tight and that the eyelets or line outlets are not wearing into sharp grooves.
A replacement head should make the job less fiddly, not create another maintenance routine. Choose one that fits your machine correctly, suits the work underfoot and lets you reload without losing half your afternoon. That leaves more time for the part that matters - a tidy boundary, clear fence lines and a property that looks looked-after.
